4K STAND ALONE MEDIA PLAYER

  HomeReddie Group  /  Media Player  /  4K STAND ALONE MEDIA PLAYER
4K STAND ALONE MEDIA PLAYER
Convert Existing Screens into Digital Signage Displays
icon-html5

Display Live Web Pages

icon-techsupport

Lifetime Technical Support

Cloud Based Software

Cloud-Based Software

icon-mediazones

Multiple Media Zones

24/7 Usage

24/7 Usage

icon-ecopower (1)

Eco-Friendly Power Timer

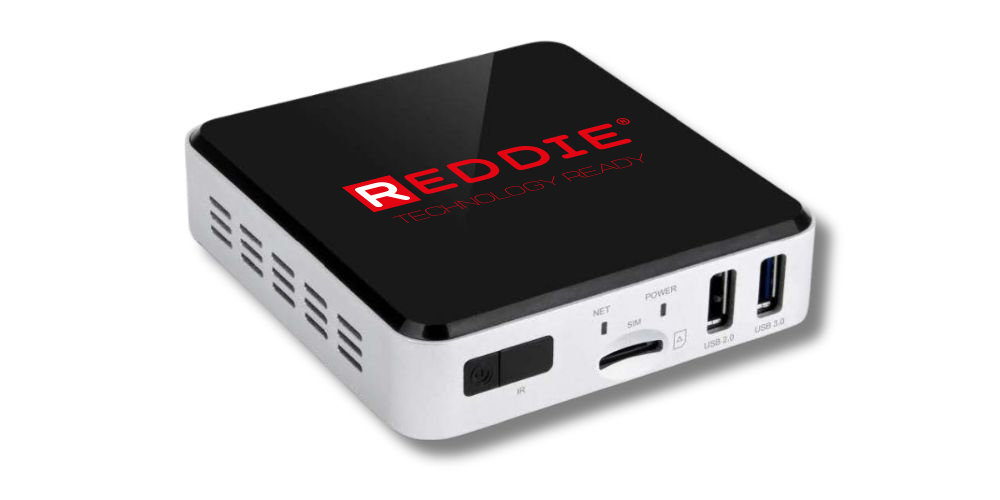

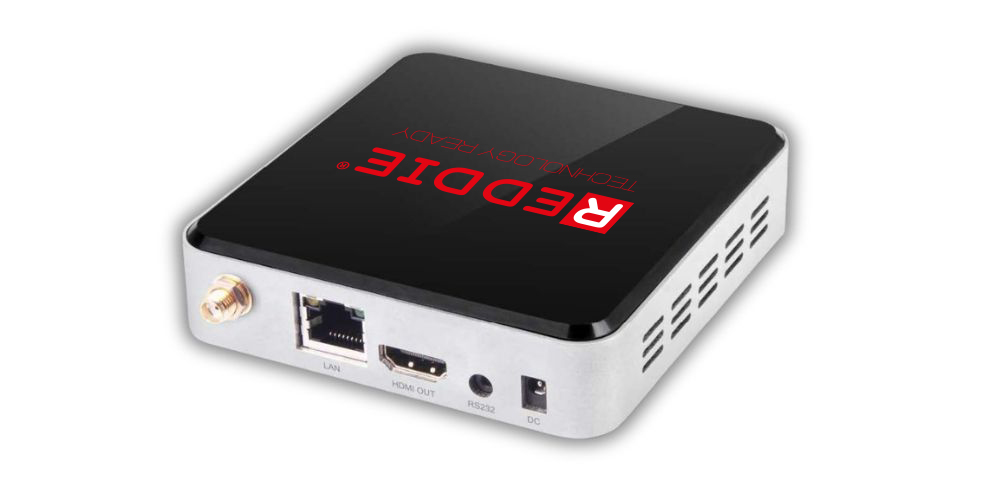

Front ViewBack View

Android Media Player

Thanks to their Android OS, these players are more easily updateable and faster than ever before. Our Android PC board makes it easy to upgrade your player to be networked and also allows our customers to either use Reddie Portal Content Manager or Jumbilin by Reddie Content Manager to manage their digital menu boards.

Free Scheduling Software

To get the most out of the player, you can use our free scheduling software, allowing you to display different content at certain times of the day. You can also add scrolling text and set image duration and transition effects using this software.

Create Custom Layouts

This allows you to deliver targeted content and display your images, videos, webpages, time and date exactly how you want to. You can even add scrolling messages. Add your logo to your content and use your corporate colors in the template design to maintain brand consistency.

Remote Screen Functions

You can control most of your screen’s functions via the CMS, such as playing and stopping content as well as the volume control and scheduling on/off times; a truly centralized solution.

4K Ultra HD

Our Media Player uses Mali – T864 series GPU chips which support 4K H.265 hard decoding and very smoothly plays multi-format 4K videos with smooth transitioning and no black screen. This produces the best-in-class, ultra-clear images for visual enjoyment.

Update from Anywhere

Content can be uploaded and managed from anywhere in the world via our web portal www.jumbilin.com or www.reddieportal.com. Simply log in, upload your images and videos to our secure server and send them directly to your screens.

Plug and Play (*Optional)

These 4K Android media players can also be easily updated using a USB stick. Load your pictures and videos onto a USB stick and insert it into the media player, this copies the files to its internal memory. Once you remove the USB stick, your pictures and videos will play in a continuous loop.

Manage Your Users

You may wish to limit some functions or zones to specific users. For example, you may wish to allow a receptionist to have access to the screen in the reception area but nothing else – our system allows full user rights control.

24/7 Commercial Use

Commercially graded high-quality components are used in the design of the media player to ensure that it can be in constant use 24/7. Unlike domestic media players or DVD players, this unit is purpose-built to run constantly and is extremely robust. You can even use this media player to run interactive touch screen apps.

Eco-Friendly Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your media player. The ability to power on and off automatically means that the media player is only in use when it needs to be, improving your environmental efficiency.

Technical Details: Model: G-APC329-L4

Video
MPEG1, MPEG2, MPEG4, H.264, HDMI, VGA

Audio
Supports MP3, ACC etc (3.5mm)

Power

Power Consumption (W)
<5

Input Voltage
AC110~240V (50Hz~60Hz)

Mechanical

Unit Size
227.1×29.9×129.04mm

Package Size
237.5x165x129

Net Weight
0.35kg

Gross Weight
0.55kg

Environmental

Operating Temperature
0°C to 50°C

Storage Temperature
-30°C to 60°C

Operating Humidity
10% to 80%

Storage Humidity
5% to 95%

Computer

Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

USB
USB 2.0 HOST (x3)

USB 3.0 (x2)

USB Type -A*3; USB Type-A*1 & USB Type C*1

Media Resolution
1920×1080/1080×1920

GPU
4 Core Arm Mali-T864

LAN
Ethernet x1, RJ45, 100M/1000M

Internal Memory
6 GB

RAM
LPDDR4 4 GB

Wi-Fi
802.11b/g/n (Network version screen only)

CPU
Rockchip RK3399

6 Core 64 bit (dual Cortex A-72 large cores + quad Cortex A53 small cores)at 1.8 GHz

ROM
32 GB Note: Support TF/USB Extension

OS
Android 11

Graphic Engine
OpenGL ES 1.1/2.0, OpenVG 1.1

Accessories

Included
HDMI Cable, Scheduling Software, Remote Control, User Manual
