INDOOR DIGITAL MENU BOARDS

INDOOR DIGITAL MENU BOARDS

Update Over the Internet

Updating your Indoor Digital Menu Board is extremely simple; connect it to your network using the integrated Wi-Fi or using an Ethernet cable. Log on to our online content management system to upload your own media, manage playlists, create your own templates and schedule content for whenever you want; giving you complete control over your screens. No special software installation or dedicated PC is required, you can update your screens from anywhere in the world with an internet connection. For a free trial account go to www.reddieportal.com

1 Year Free Software Licence

With our package the first year of using our cloud based content management system is absolutely free. You don’t pay anything for 12 months and get full unrestricted access to the software as well as lifetime technical support.

Landscape or Portrait

Our displays are as versatile as your brand. They can be used in portrait or landscape orientation based on your needs or your store’s aesthetic.

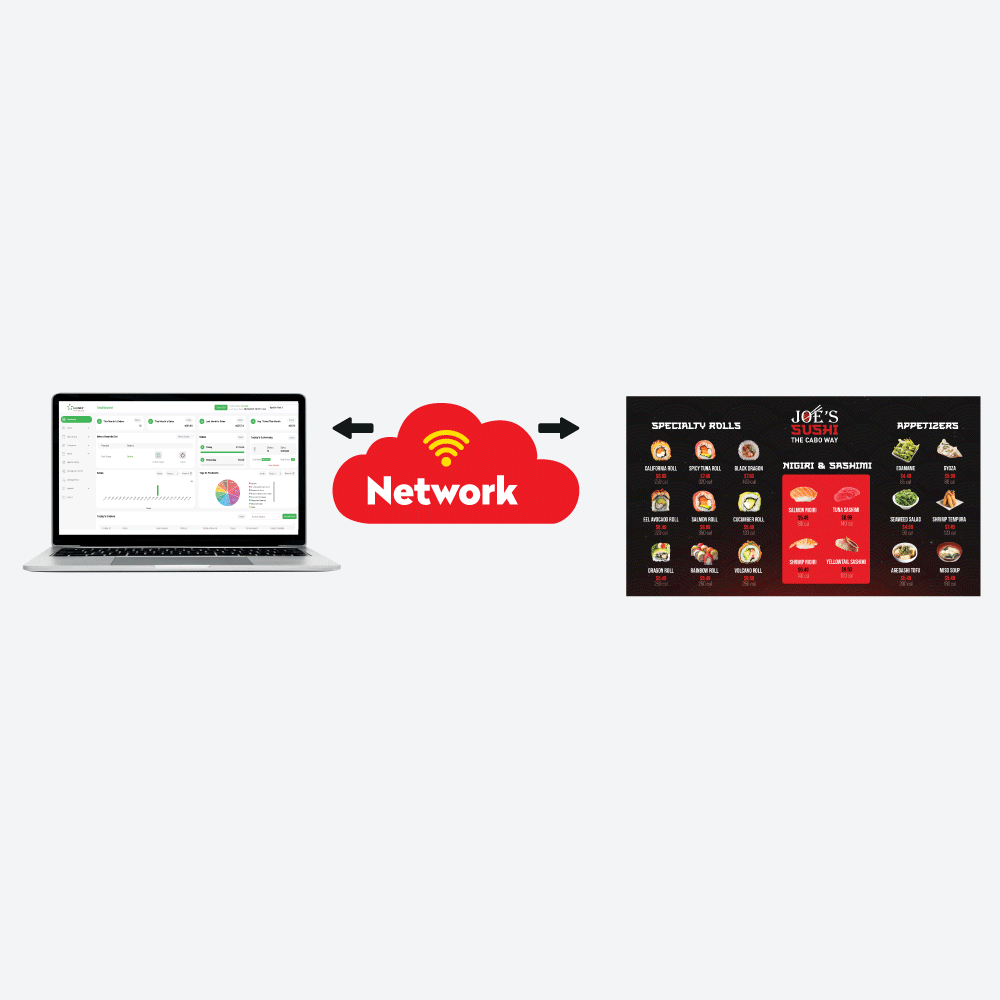

Menu Board Sync

Modernize the in store ordering experience with ease and increase transaction speed with Reddie’s Menu Board Sync. Menu board sync means you can make updates to menu board items and prices in real time through your POS.
Updating your menu offerings via the POS means it updates wherever the menu is displayed such as your digital drive thru, indoor menu boards, self order kiosks, window signs etc.
Reddie has Menu Board Sync integrations with over 50 established POS systems including Square, Clover, Toast, Revel, NCR Aloha, Lightspeed, PAR and Treez.

Multi-Screen Synchronisation

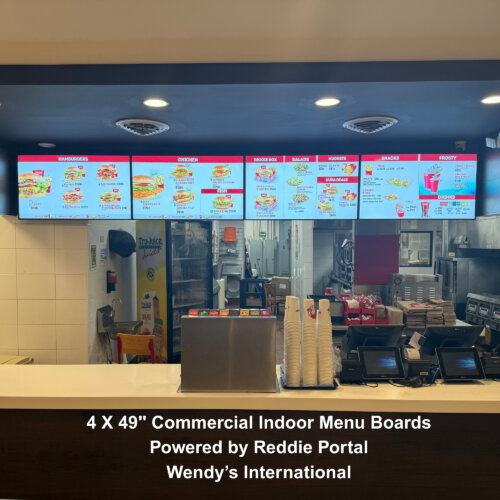

You can synchronise your Indoor Digital Menu Boards across multiple screens provided they are connected to the same network. This is ideal for menus above the counter.

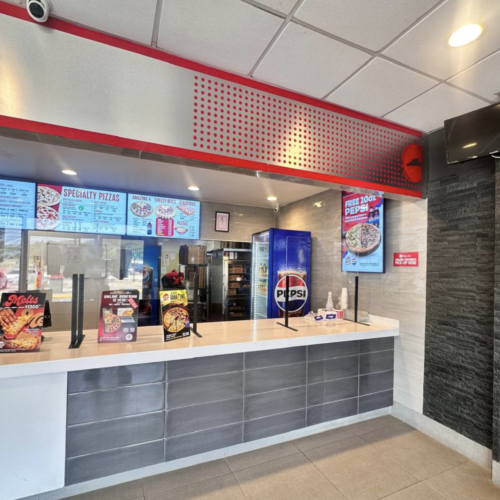

Indoor Digital Menu Board

Indoor Digital Menu Board

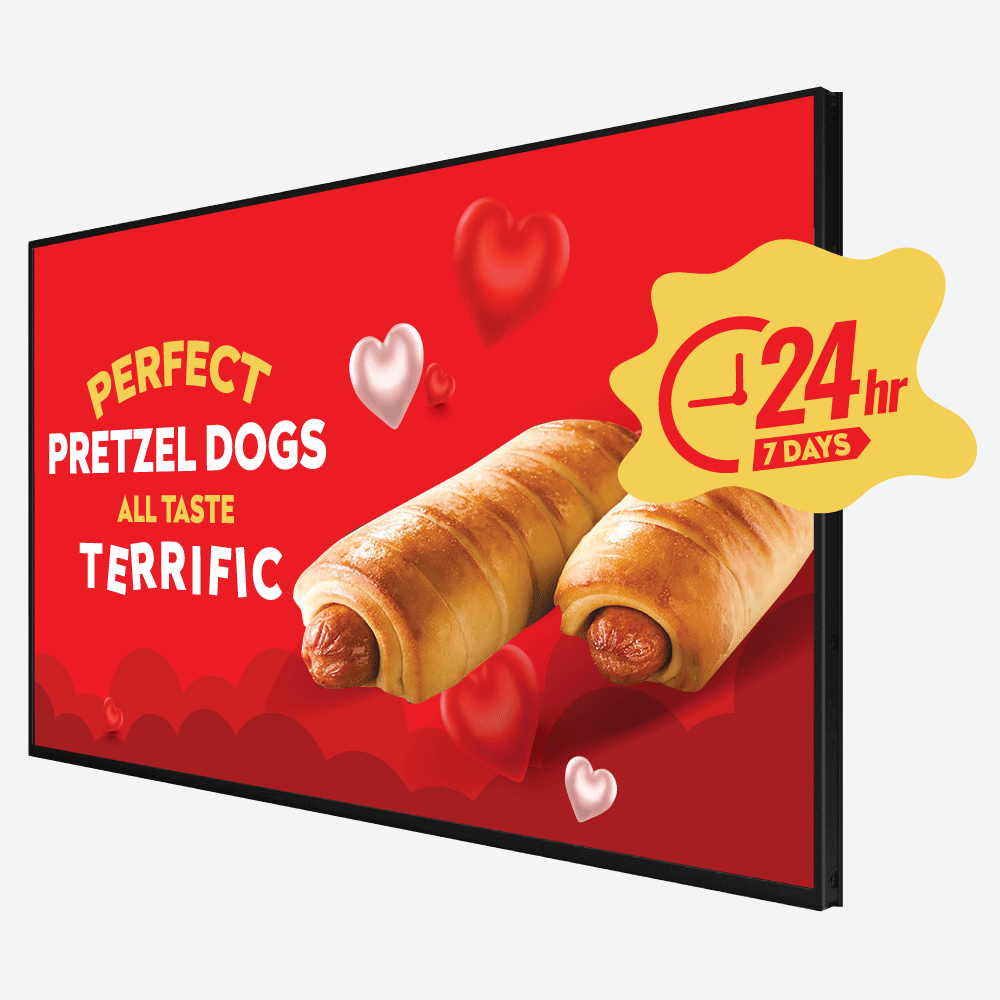

Commercial Grade IPS Panel

With a commercial grade IPS panel with a brightness of 700 nits (twice the brightness of domestic televisions) this Indoor Digital Menu Board is able to reproduce and maintain the ultimate colour temperature for lifelike images even in the most challenging lighting environments. With a lifespan of over 50,000 hours with no loss in image quality. There are no external buttons or controls on the screen to avoid tampering.

Narrow Bezel

A Slim Bezel makes for stunning images and seamless displays on above-the-counter digital menu boards. It allows your content to be the focal point without the interference of clunky borders around your device. When multiple indoor digital menu boards are placed side by side, the result is a pristine display of content because of the thinner edge and superior image precision.

Portrait or Landscape

The screen can be used in either a landscape or portrait orientation depending on your requirement.

Integrated Speakers

The displays have two integrated speakers for applications that involve an audio element.

Complete Signage Solution

Content Editor Vs. Plug and Play (Optional)

Reddie’s online content management system allows for changes to copy, static images and video updates in real time remotely via the internet. If there is no internet access available the screen can still be updated thanks to their backup USB update option. Simply package up your Playlist onto a USB stick and insert into the screen. Your templates, schedule and content will now copy over and start playing.

Power Timer

The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen. The ability to power on and off automatically means that the screen is only in use when it needs to be; improving your environmental efficiency.

Scrolling Text Message

Display a ticker tape message or live RSS feed. From here you can adjust the font, size, colour, speed and direction of the text.

Full Specification

32 Inch - G32INMB

Display Size (mm)
698.4(H) x 392.85(V)

Display Size (inches)
27.50(H) x 15.5(V)

Net Weight
8.46kg | 19lbs

Unit Size (mm)
716.2 (H)x415.05 (V)x45.95(D)

Unit Size (inches)
28.2o (H)x16.34 (V)x1.8(D)

Gross Weight
10.79kg | 24lbs

Display Screen
31.51 inches LED backlight

Power Consumption (w)
38

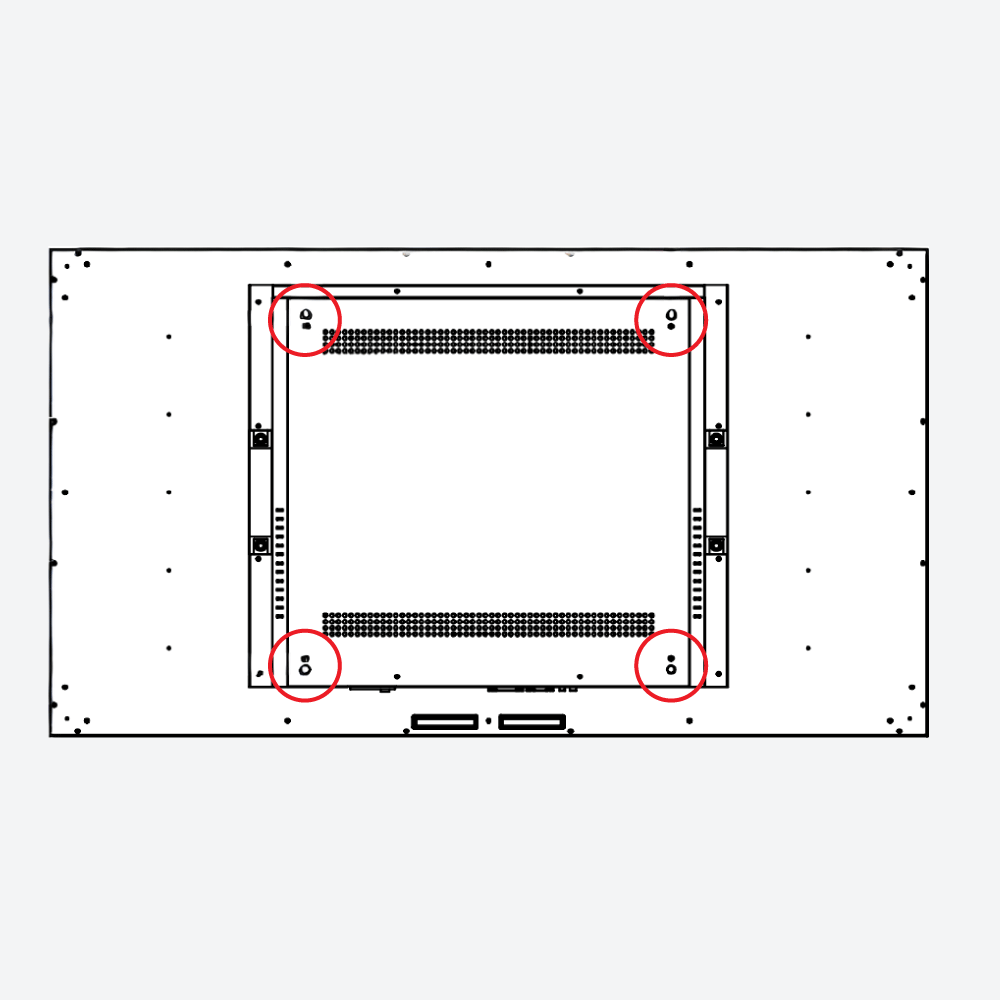

VESA Install
400×200

Panel

Resolution
1920×1080

Viewing Angle
89° (U/D/L/R)

Aspect Ratio
16:9

Image Comparison
1200:1

Brightness (nits)
700 nits

Color
16.7M

AV Inputs

Video
HDMI, VGA

Audio
Audio Socket (3.5mm)

Speaker Type
2x2W, 4Ω

Enviromental

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-30°C to 60°C (-22°F to 140°F)

Operating Humidity
10% to 80%

Storage Humidity
5% to 95%

Computer

Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS)

Image (JPG,GIF,BMP,PNG)

Audio (MP3, WMA)

USB
USB2.0 HOST (x2)

Media Resolution
1920×1080/1080×1920

GPU
Mali-400 MP4 @600MHz

LAN
10/100M Ethernet (Network version screen only)

Internal Memory
8GB

RAM
2GB

Wi-Fi
802.11b/g/n (Network version screen only)

CPU
T972-SR Quad-Core A55 1.9GHz

ROM
8GB

OS
Android 9.0

Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

Included
Power adaptor, WIFI. Antenna, keys

Optional

Wall Mount

43 Inch - G43INMB

Display Size (mm)
941.184(H)x529.416(V)

Display Size (inches)
37.05(H)x21(V)

Net Weight
8.05kg | 17.74lbs

Unit Size (mm)
957(H)x547.8 (V)x88.1(D)

Unit Size (inches)
38(H)x21.5 (V)x3.5(D)



Gross Weight
10.55kg | 23.25lbs

Display Screen
42.5 inches LED backlight

Power Consumption (w)
45

VESA Install
200×200

Panel

Resolution
3840×2160

Viewing Angle

89°(U/D/L/R)

Aspect Ratio
16:9

Contrast Ratio
5000:1

Brightness(nits)
350

Color
1.07 G colors

AV Inputs

Video
HDMI, VGA

Audio
Audio Socket (3.5mm)

Speaker Type

2×5W 4Ω

Enviromental

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-30°C to 60°C-(-22°F to 140°F)

Operating Humidity
10% to 80%

Storage Humidity
5% to 95%

Computer

Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS)

Audio (MP3, WMA)

Image (JPG, GIF, BMP, PNG)

USB
USB2.0 HOST (x2)

Media Resolution
1920×1080/1080×1920

GPU
Mali-400 MP4 @600MHz

LAN
10/100M Ethernet (Network version screen only)

Internal Memory
8GB

RAM
2GB

Wi-Fi
802.11b/g/n (Network version screen only)

CPU
T972 Quad-Core A55 1.9GHz

ROM
8GB

OS
Android 9.0

Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

Included
Power adaptor, WIFI. Antenna, keys

Optional

Wall Mount

50 Inch - G50INMB

Display Size (mm)
1095.84(H) x 616.41(V)

Display Size (inches)
43(H) x 24.27(V)

Net Weight
16.2kg | 35.7lbs

Unit Size (mm)
1115.6(H) x 636.2(V) x46.6(D)

Unit Size (inches)
44(H) x 25.05(V) x1.8(D)

Gross Weight
20.4kg |45lbs

Display Screen
50 inches LED backlight

Power Consumption (w)
55

VESA Install
400×400

Panel

Resolution
3840×2160

Viewing Angle
89° (U/D/L/R)

Aspect Ratio
16:9

Contrast Ratio
5000:1

Brightness(nits)
350

Color
1.07 billion colors

AV Inputs

Video
HDMI, VGA

Audio
Audio Socket (3.5mm)

Speaker Type
2x2W, 4Ω

Enviromental

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-30°C to 60°C (-22°F to 140°F)

Operating Humidity
10% to 80%

Storage Humidity
5% to 95%

Computer

Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS)

Audio (MP3, WMA)

Image (JPG, GIF, BMP, PNG)

USB
USB2.0 HOST (x2)

Media Resolution
1920×1080/1080×1920

GPU
Mali-400 MP4 @600MHz

LAN
10/100M Ethernet (Network version screen only)

Internal Memory
8GB

RAM
2GB DDR3

Wi-Fi
802.11b/g/n (Network version screen only)

CPU
T972 Quad-Core A55 1.9GHz

ROM
8GB

OS
Android 9.0

Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

Included
Power adaptor, WIFI. Antenna, keys

Optional
Wall Mount

55 Inch - G55INMB

Display Size (mm)
1209.6(H)x680.4(V)

Display Size (inches)
48(H)x27(V)

Net Weight
19.45kg | 42.8lbs

Unit Size (mm)
1232(H)×708.9 (V)×50.4(D)

Unit Size (inches)
48.4(H)×28 (V)×1.9(D)

Gross Weight
24.6kg | 54.2lbs

Display Screen
54.64 inches LED backlight

Power Consumption (w)
65

VESA Install
200×400

Panel

Resolution
3840×2160

Viewing Angle
89° (U/D/L/R)

Aspect Ratio
16:9

Contrast Ratio
1200:1

Brightness(nits)
350

Color
1.07 billion colors

AV Inputs

Video
HDMI, VGA

Audio
Audio Socket (3.5mm)

Speaker Type
2x2W, 4Ω

Enviromental

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage Temperature
-30°C to 60°C (-22°C to 140°C)

Operating Humidity
10% to 80%

Storage Humidity
5% to 95%

Computer

Media Formats
Video (MPG, AVI, MP4, RM, RMVB, TS)

Audio (MP3, WMA)

Image (JPG, GIF, BMP, PNG)

USB
USB2.0 HOST (x2)

Media Resolution
1920×1080/1080×1920

GPU
Mali-400 MP4 @600MHz

LAN
10/100M Ethernet (Network version screen only)

Internal Memory
8GB

RAM
2GB

Wi-Fi
802.11b/g/n (Network version screen only)

CPU

T972 Quad-Core A55 1.9GHz

ROM
8GB

OS
Android 9.0

Graphic Engine
OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Accessories

Included
Power adaptor, WIFI. Antenna, keys

Optional
Wall Mount
