Weatherproof
Sunlight Readable Display
24/7 Usage
Plug and Play (Optional)
Eco-Friendly
Power Timer
Wide Viewing Angle
Vandal Proof
Anti-glare Glass
Full High
Definition 1080p
Cloud Based Software (Optional)
Lifetime Technical
Support
3 Years Warranty
Features
Reddie’s IP66 Outdoor Display Increases Brand Equity and Visibility
Reddie’s IP66 Outdoor Display is the ultimate solution for enhancing brand equity and visibility. Designed for durability and performance in all weather conditions, these displays are available in a wide range of sizes, including 32″, 43″, 49″, 55″, 65″ and 75″. This versatility ensures a perfect fit for any outdoor advertising or informational need, whether it’s a compact display for smaller spaces or a large, attention-grabbing screen for high-traffic areas.

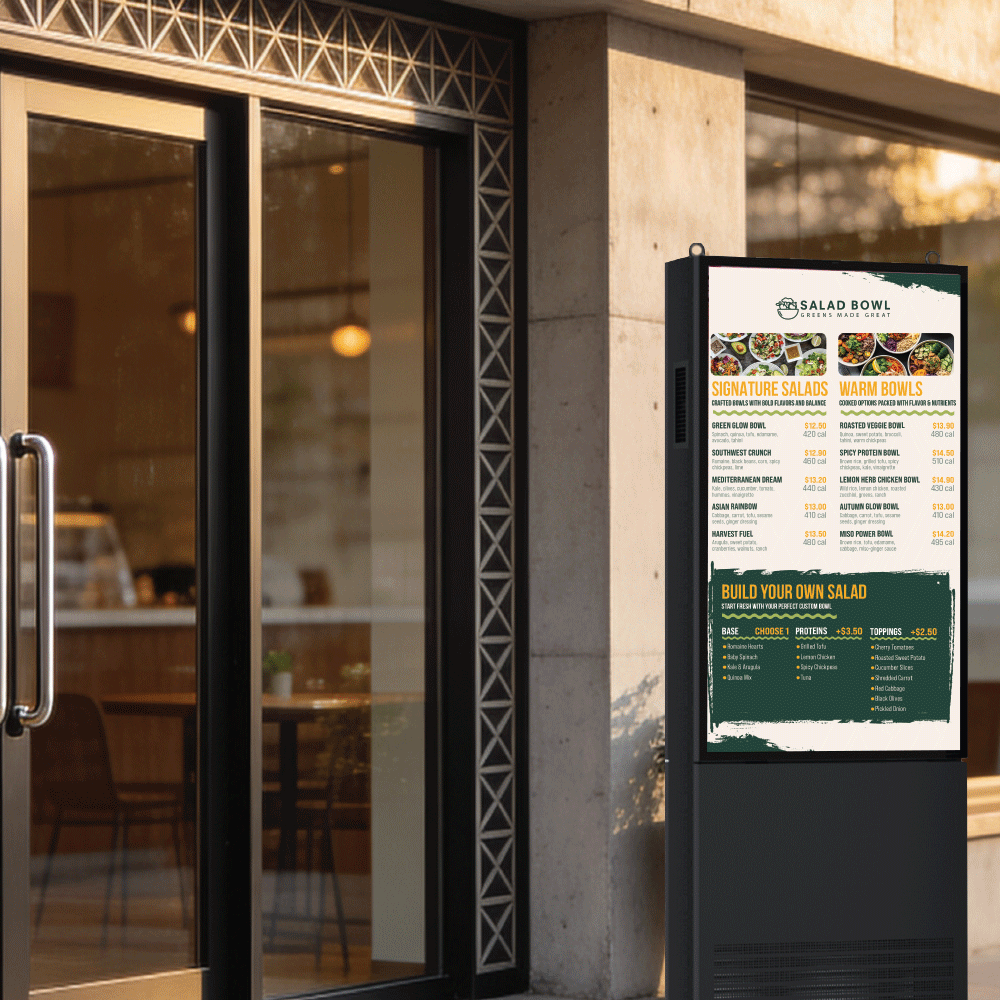

Commercial Grade IPS Panel
With a commercial-grade IPS panel featuring an impressive brightness of 4000 nits, Reddie’s IP66 Outdoor Display delivers exceptional image quality that stands out even in the most challenging lighting conditions. Built for longevity, the display boasts a lifespan of over 50,000 hours with no degradation in image quality, ensuring consistent performance over years of use.

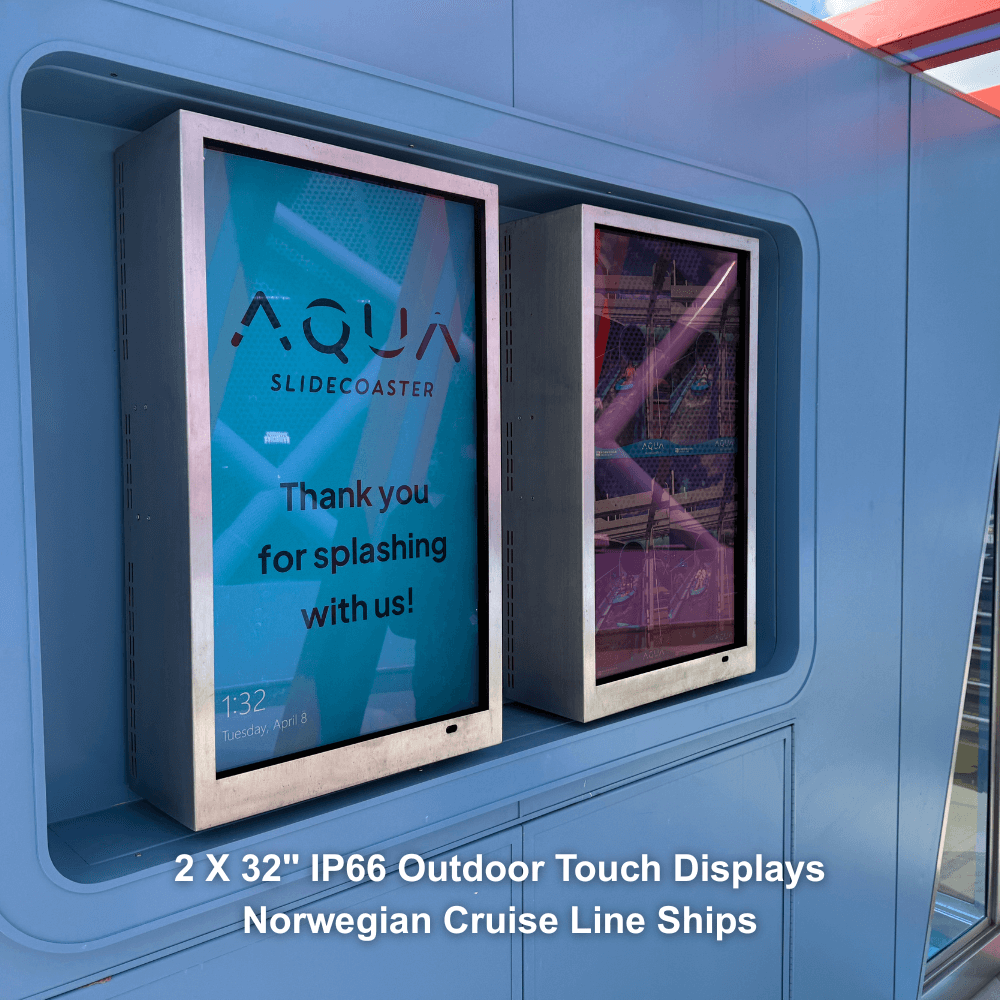

Wall Mounted; Portrait Orientation
Reddie’s IP66 Outdoor Display provides versatile installation options, including wall mounting. It can be seamlessly rotated into a portrait orientation, perfect for dynamic, eye-catching content and modern designs.
Wall Mounted; Landscape Orientation
Reddie’s IP66 Outdoor Display offers flexible installation options, including wall mounting. It can be effortlessly rotated into a landscape orientation, ensuring optimal visibility and adaptability for any setting.
Weatherproof: IP66 Rated
Reddie’s IP66 Outdoor Display is rated IP66, which means the menu board structure provides superior protection against the damaging effects of dust, direct sunlight, rain and snow.
Excellent as an Outdoor Preview Board
Reddie’s IP66 Outdoor Display excels as an Outdoor Preview Board with 4000 nits brightness, IP66 protection, vibrant visuals, a 50,000-hour lifespan, and flexible portrait orientation options.
Other Benefits (click to view)
Our IP66 Outdoor Display meets the NRTL standards making it on par with top level and best in class industry standards.
With brightness reaching up to 4000 nits, the IP66 Outdoor Display is readable under direct sunlight, which delivers clear and attractive content for viewers no matter where they are.
Covered with IK10-rated impact resistant 5mm thickness tempered glass, Reddie’s IP66 displays are guaranteed for outdoor applications to endure external impacts. IK rating refers to the degree of resistance against external impacts on a scale of 0 to 10, where 10 indicates the highest level of protection.
Even under direct exposure to sunlight, the display resists blackening defects up to 230°F / 110°C.
Reddie’s IP66 Outdoor Displays are fully laminated with anti-reflection glass, which eliminates the air between the LCD panel and tempered glass. This helps to provide high brightness, lower reflection and high contrast ratio display with an 89/89 wide viewing angle, making the displayed images richer and clearer under direct sunlight.
Full Specifications
Panel Information:
Panel size: 32”
Resolution: 1080×1920
Brightness: 4000 nits
Active Area: 698x393mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 750*445*85 mm | 30*18*4 inches
Net Weight (Display Only): 16.5 kg / 37 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
Panel Information:
Panel size: 43”
Resolution: 1080×1920
Brightness: 4000 nits
Active Area: 941x530mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 994*582*85 mm | 40*23*4 inches
Net Weight (Display Only): 26 kg / 58 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
National Recognised Testing Laboratory (NRTL) & Other Certifications
ETL 5025410, FCC, CE
Panel Information:
Panel size: 49”
Resolution: 1080×1920
Brightness: 4000 nits
Active Area: 1075x6050mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 1127*657*85 mm | 44*25*4 inches
Net Weight (Display Only): 31 kg / 69 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
Panel Information:
Panel size: 55”
Resolution: 1080×1920
Brightness: 4000 nits
Active Area: 1210x680mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 1262*733*85 mm | 50*29*4 inches
Net Weight (Display Only): 37 kg / 82 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
Panel Information:
Panel size: 65”
Resolution: 2160×3840
Brightness: 4000 nits
Active Area: 1429x804mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 1481*856*86 mm | 59*34*4 inches
Net Weight (Display Only): 49.5 kg / 110 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
Panel Information:
Panel size: 75”
Resolution: 2160×3840
Brightness: 4000 nits
Active Area: 1652x930mm
Viewing Angle (L/R/U/D): 89/89/89/89
Aspect Ratio: 16:9
Display Colors: 1.07B, 105%
LED Lifetime: 50,000 hours
Blackening Defect Free: Up to 110 °C / 230 °F
Orientation: Portrait & Landscape
Mechanical
Brightness Control: Sensor Built-in
Bezel Width (T/B/L/R): 26/26/26/26 mm | 1/1/1/1 inch
Overall Dimensions: 1703*982*86 mm | 67*39*4 inches
Net Weight (Display Only): 65.5 kg / 145 lbs
Connectivity
HDMI IN x 2
Power Port x 1
OSD Language: English
Operating System: Optional Reddie Media Player
Operating System: Optional Built-In OS (Android 11/Windows 10)
Special Features
Tempered Glass: Anti-Reflective Glass with IK10 Impact-resistant
Process: Optical Bonded
Weatherproof Design: IP66
Cooling System: Smart Cooling Fan
Operating Temperature: -20°C ~ 60°C / -4°F ~ 140 °F
Power
Power Supply: AC 110~240V
Rated Frequency: 50/60Hz
